A sprinkler head not popping up is one of the most common irrigation issues we see on Dallas properties, and one of the most frequently misdiagnosed. The head sits flush with the ground, the zone runs, and nothing happens. Or it barely rises, sprays weakly, and retracts. Either way, that section of your lawn stops getting the water it needs, and in a North Texas summer, damage shows up fast.
The good news is that most stuck sprinkler heads have a straightforward cause. Dirt and debris buildup, low water pressure, a damaged riser, or a valve that isn’t opening fully can all keep a head from extending properly. Identifying the right cause matters, because replacing a head that only needed cleaning wastes time and money, while ignoring a deeper pressure issue means the problem comes back.
This guide walks through the most common reasons a sprinkler head fails to pop up, how to troubleshoot each one, and when the issue points to something beyond a quick fix. At Greenform Landscapes, our team handles irrigation system repair across Dallas, and these are the same diagnostic steps we follow on properties in Preston Hollow, Lakewood, and throughout the metroplex. Whether you handle it yourself or bring in help, understanding what’s actually going on underground puts you in a better position either way.
What makes a sprinkler head stay down
A sprinkler head is designed to rise under water pressure and retract when the zone shuts off. When a sprinkler head not popping up becomes the pattern on your system, the cause is almost always in one of two categories: something physically wrong with the head itself, or a system-level issue that prevents enough pressure from reaching it. Understanding which category applies to your situation is what determines the right fix.
Physical issues at the head
The most common physical cause is dirt, sand, or turf debris clogging the filter screen or jamming the riser mechanism. In North Texas, fine clay particles and construction debris work their way into heads over time. A head that rises slightly but won’t fully extend, or one that doesn’t move at all, often has a blocked or seized riser. Another frequent issue is a sunken head. Foot traffic, soil settling, and heavy clay expansion cycles can push a head several inches below grade, which means even at full pressure, the spray pattern never clears the turf.
A sunken or tilted head rarely corrects itself over time. If the head sits more than half an inch below grade, the coverage gap will only grow as the surrounding soil continues to shift.
Physical damage is also worth checking before you do anything else. Lawn mowers and edgers clip heads more often than most homeowners realize. A cracked body or sheared riser won’t hold pressure, so the head stays flat while water leaks out around the base instead of pushing the riser upward.
System-level causes
When multiple heads in the same zone fail to pop up, the issue is almost never the individual heads. Low water pressure is the most likely explanation, and it has several sources: a partially closed shutoff valve, a failing zone valve, a pressure regulator set too low, or significant pipe damage somewhere upstream. A single zone that underperforms while others run normally points directly to a valve or zone-level problem rather than a supply issue affecting the whole system.
Step 1. Start with an irrigation inspection
Before you dig anything up or replace any parts, run the zone manually and watch what happens from the beginning. A proper irrigation inspection gives you a clear baseline that tells you whether the problem is isolated to one head, one zone, or the whole system. Starting without this step often leads to replacing parts that were never the actual problem.
Run each zone for at least two minutes and note exactly which heads rise fully, which rise partially, and which stay completely flat.
What to look at before you touch anything
Walk the zone while it runs and check for visible signs of the underlying issue. A head with no movement at all usually points to a pressure or valve problem upstream. A head that rises partway but won’t fully extend often has physical damage or debris inside the riser body that’s preventing full travel.
Also look at the surrounding turf and soil before the zone shuts off. A wet or muddy area near a sprinkler head not popping up suggests a cracked body or a leaking lateral line feeding that head. Water is escaping around the base instead of pushing the riser upward. Note these spots while the zone is still running, because the surface moisture disappears quickly once the water cuts off. This visual pass takes only a few minutes but gives you the information you need to work through the remaining steps accurately.
Step 2. Check shutoffs, backflow, and water pressure
If your inspection shows multiple heads not rising across several zones, the problem likely sits upstream of the heads themselves. Supply-side issues are often overlooked because homeowners focus on the heads first. Before you go further, spend a few minutes checking the basic components that control water flow to the entire system.

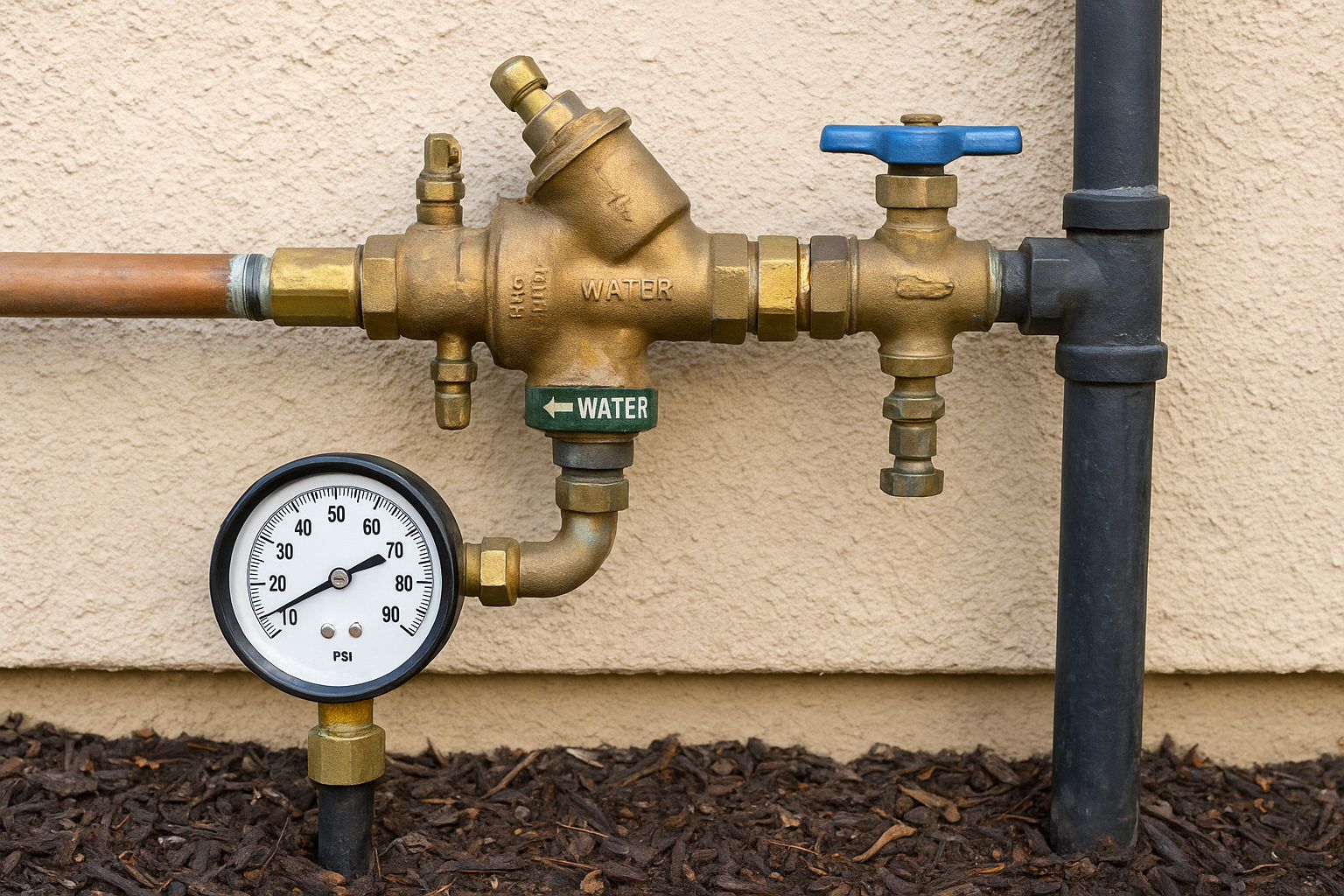

Start at the main shutoff and backflow preventer
Your irrigation system typically has a dedicated shutoff valve located near the backflow preventer, which is usually mounted on an exterior wall or near the water meter. Check that this valve is fully open, not partially closed. A quarter-turn ball valve should sit parallel to the pipe when fully open. On the backflow preventer itself, both test cocks need to be closed and both shutoff handles need to sit parallel to the supply line. A handle turned at any angle reduces flow to the entire system and can leave you with a sprinkler head not popping up across every zone.
A partially closed backflow preventer handle is one of the most common causes of system-wide low pressure, and it takes less than thirty seconds to check.
Measure your operating pressure
Low pressure is easy to confirm with a simple pressure gauge threaded onto a hose bib near the irrigation supply. Normal residential irrigation pressure runs between 45 and 65 PSI during operation. A reading below 40 PSI suggests either a supply problem, a pressure regulator set too low, or a significant leak somewhere in the main line feeding your system.
Step 3. Isolate the issue to all zones, one zone, or one head
Once you’ve confirmed supply pressure is adequate, the next step is narrowing down where the problem actually lives. Run each zone individually and record the pattern of failure before you touch a single head or valve. That single observation tells you more than swapping parts ever will.
All zones underperform
If every zone runs weak and you’re seeing a sprinkler head not popping up in multiple areas across the system, the problem sits upstream of everything. A partially closed main shutoff, a pressure regulator set too low, or a supply line failure are the most likely causes. Go back and recheck the shutoff valve and backflow preventer before moving forward.
- Confirm the main shutoff is fully open
- Verify both backflow handles sit parallel to the supply line
- Re-measure operating pressure at the hose bib
One zone underperforms
When a single zone runs weak while others perform normally, the zone valve is your first stop. A valve that opens only partially restricts flow to every head in that zone regardless of head condition. Check the solenoid connection and look for debris around the valve seat.
A zone valve that opens slowly or incompletely often responds to debris flushing before it requires full replacement. Check it before ordering parts.
One head fails
If only one head stays down while the rest of the zone runs normally, the issue is almost certainly local to that specific head. The most common causes point to physical damage or debris rather than anything upstream:
- A clogged filter screen or debris jammed in the riser
- A cracked body or sheared riser from mowing contact
- A sunken head sitting too far below grade to rise fully
Step 4 covers how to address each one directly.
Step 4. Fix a stuck, clogged, or sunken sprinkler head
Once you’ve confirmed the issue is local to a single head, fixing it is usually straightforward. Most cases of a sprinkler head not popping up come down to debris, damage, or grade change, and each has a specific repair approach. Turn off the zone valve before handling any head.
Clear a clogged riser or filter screen
Twist the head counterclockwise to unscrew it from the body, then pull the riser out and rinse the filter screen under running water. If the riser feels stiff or won’t travel smoothly by hand, debris is likely packed inside the body cavity. Flush the body by briefly turning the zone on with the head removed, which forces remaining debris out through the opening.
If the filter screen has visible cracks or the riser doesn’t travel smoothly after cleaning, replace the head rather than reinstalling a damaged one.
Reinstall the head and run the zone to confirm it rises fully and retracts cleanly after the zone shuts off.

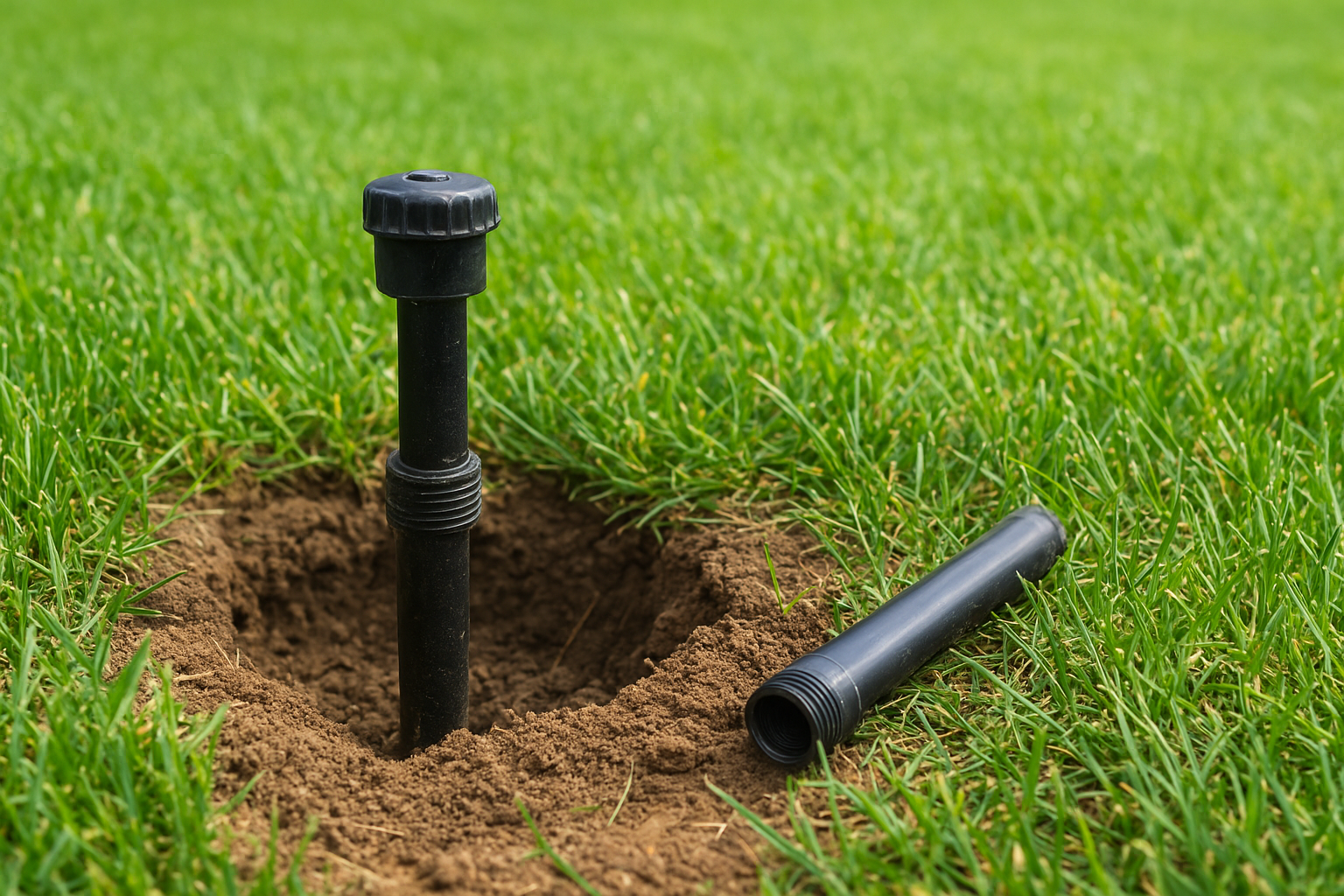

Raise a sunken head
A head sitting too far below grade requires raising the riser or adding a swing joint to bring the spray nozzle level with the surrounding turf. This is common in North Texas clay soils, where repeated expansion and contraction push heads downward over several seasons.
Dig a small area around the head, disconnect the riser, and install a riser extension or replacement swing joint at the correct height. Backfill carefully and tamp the surrounding soil to prevent the head from settling again.
Step 5. Fix leaks, valves, and zone design issues
When the problem extends beyond a single head, lateral line leaks and faulty zone valves are the most likely causes. Each requires a different repair approach, but both share one result: they reduce the pressure available to every head in the zone, which means a sprinkler head not popping up may be a symptom of something further along your lateral line.
Address a leaking lateral line
Lateral line leaks bleed pressure before water reaches the heads at the far end of the run. Look for wet or persistently soggy turf along your pipe route while the zone is running. Once you’ve marked the location, dig carefully to expose the pipe and check for cracked fittings, separated couplings, or punctures from root or tool contact. Slip couplings make most repairs straightforward without requiring you to replace long sections of pipe.
A single lateral line leak can drop zone pressure enough to leave the last two or three heads in the run completely flat.
Rebuild or replace a zone valve
A zone valve that opens only partially restricts flow across your entire zone regardless of head condition. Remove the solenoid and check the diaphragm for tears or trapped debris. Valve repair kits cover most common brands and include a replacement diaphragm, spring, and seat. Flush the valve body thoroughly before reassembling to clear any sediment that caused the restriction.
Common signs your valve needs attention before it fails completely:
- The zone runs several seconds before any heads begin to rise
- Pressure feels inconsistent between head locations within the same zone
- The solenoid clicks but heads respond slowly or unevenly
When to call a pro
Most cases of a sprinkler head not popping up come down to debris, a sunken riser, or a valve that needs attention, and you can resolve those with the steps above. But some situations point to problems that go deeper than head-level repairs. If you find cracked lateral lines, persistent low pressure across multiple zones, or a valve that won’t hold after cleaning, the underlying issue usually involves the system’s infrastructure rather than individual components.
Repeated failures in the same zone after you’ve already replaced parts are a clear signal to have someone look at the full system. Pipe routing, zone design, and pressure regulation all affect how reliably each head performs, and those aren’t things a single repair can address. If your system needs a thorough evaluation, schedule an irrigation inspection with a professional who can trace the problem from the supply line through every zone.
