A mature live oak or cedar elm can anchor an entire property during the day. At night, without the right lighting, that same tree disappears into a flat, dark yard. Knowing how to place landscape lighting around trees comes down to a few key decisions, fixture position relative to the trunk, beam angle selection, and choosing the right technique for the tree’s size and canopy structure.
At Greenform Landscapes, we design and install landscape lighting in Dallas properties where mature trees are often the most prominent features on the lot. Fixture placement around trees isn’t just about aesthetics, it affects shadow patterns, light spill onto neighboring structures, and how the entire yard reads after dark. Get it wrong, and the result looks flat or harsh. Get it right, and a single tree becomes the focal point of the property at night.
This guide covers the specific distances, angles, and techniques that produce clean, dramatic tree lighting, from uplighting and silhouetting to moonlighting through a high canopy. Whether you’re planning a full lighting layout or adjusting fixtures you already have, each section walks through practical placement decisions based on what actually works in the field with North Texas tree species and property layouts.
What to plan before you place any lights
Before you think about fixtures or wattage, spend time walking your property at dusk. The goal is to understand which trees are visible from the street, from inside the house, and from your primary outdoor living areas. Most lighting problems trace back to planning in daylight without accounting for how the eye moves across the yard after dark.
Map your viewing angles first
Every tree you light needs a primary viewing angle and, in many cases, a secondary one. If a tree sits on the front lawn, your most important perspective is typically from the street and the front door. If the tree borders a patio or pool, the viewing angle shifts to eye level from a seated position. Write down two or three critical sightlines before you order a single fixture, because those notes drive every placement decision that follows when planning how to place landscape lighting around trees.
The viewing angle determines fixture position. Beam spread, output, and technique all follow from that one decision.
Your sightline list also tells you which side of the tree to prioritize. A tree with a primary street-facing view doesn’t need heavy fixture coverage on its back side, which reduces fixture count and simplifies wire routing considerably.
Assess the tree’s structure and canopy
Canopy density and branch structure directly affect which lighting techniques will work on a given tree. A live oak with a dense, spreading canopy responds well to uplighting placed at a distance to wash the full crown. A crepe myrtle with an open, multi-trunk structure benefits from tighter placement near the base to highlight the bark and branch lines instead.
Run through this checklist before selecting a single fixture:
- Trunk diameter: Wide trunks need fixtures set further back to avoid flat, shadowless light
- Canopy height: Low canopies require steeper beam angles to prevent direct glare at eye level
- Branch density: Dense canopies filter uplight; open canopies reveal it more directly
- Adjacent hardscape: Patios, walls, and fences that could catch unwanted light spill
Check your power source and wire routing
Low-voltage wire runs need a clear path from the transformer to each fixture location. Trace the likely wire route before committing to any placement, and note obstacles like root flares, irrigation lines, and embedded hardscape. Runs over 100 feet can cause voltage drop that dims fixtures noticeably, so map your transformer location early and determine whether the full design requires a second circuit or a higher-capacity transformer to maintain consistent output.
Step 1. Pick the right trees and viewing angles
Not every tree on your property needs a fixture. Start by walking the perimeter of your lot at dusk and identifying the two or three trees that command the most visual weight during the day. Those trees are your starting point for how to place landscape lighting around trees, because lighting a secondary tree before anchoring your focal points produces a disjointed, cluttered result that no amount of adjustment will fix.
Evaluate which trees earn focal point status
Strong candidates share a few common traits. They sit in clear sightlines from the street, the front entry, or a primary outdoor living area. Their trunk and canopy structure has enough visual interest to reward lighting, whether that’s distinctive bark, a broad spreading crown, or strong vertical form. Trees blocked by fences, buried in dense beds, or positioned at awkward angles to the house rarely justify a dedicated circuit.
A tree that reads well during the day will almost always read well at night when lit correctly.
Use this checklist to rank your candidates before committing to fixture placement:
- Visibility: Is the tree clearly visible from at least one primary viewing point?
- Structure: Does it have a trunk, canopy, or branch pattern worth highlighting?
- Clearance: Is there adequate open space to position fixtures without obstruction?
- Scale: Is the tree large enough to anchor the lighting composition on its own?

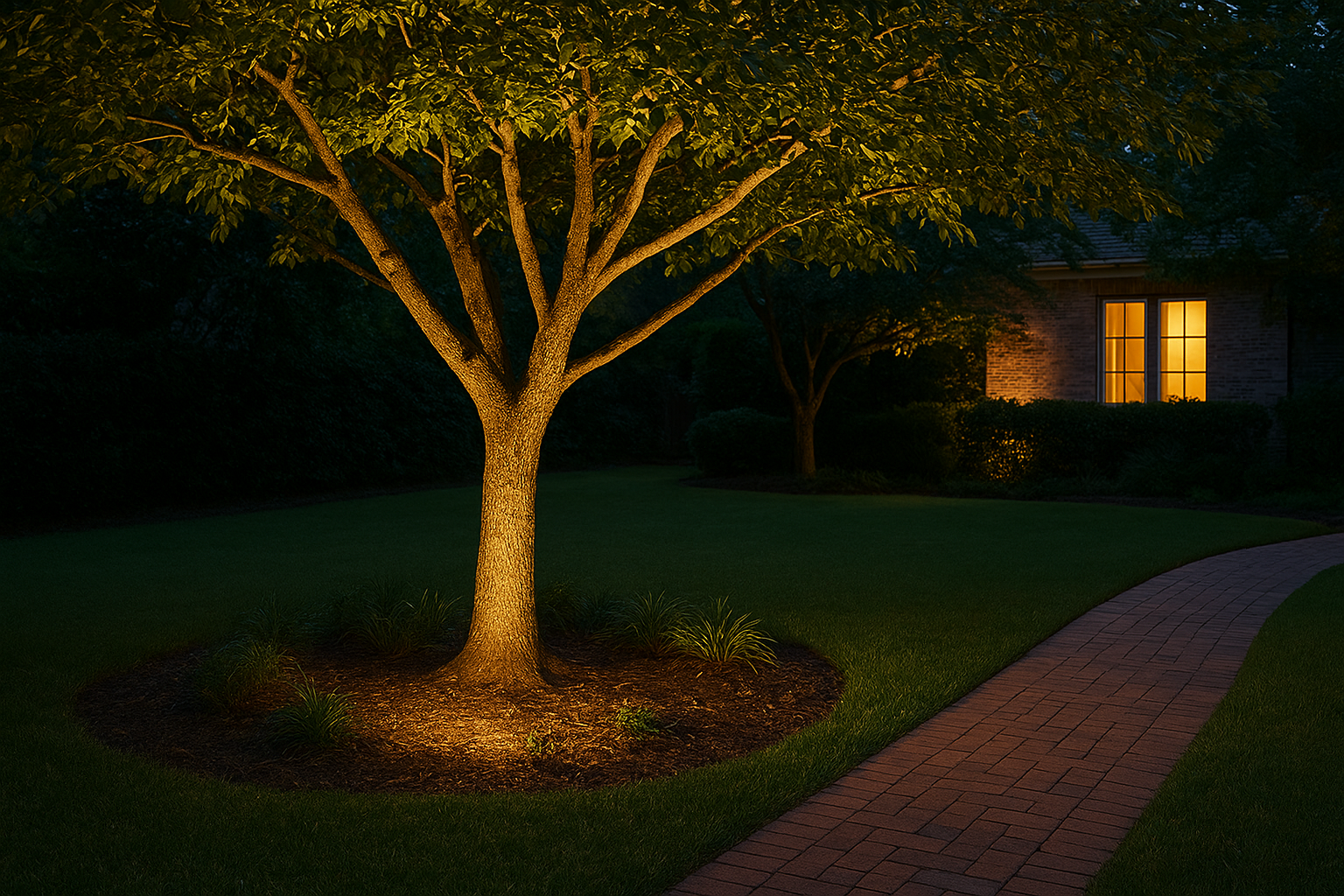

Match each tree to your primary sightline
Once you identify your focal trees, assign each one a dominant viewing direction before touching a single fixture. Use this table to connect each location to the correct placement side:
| Tree location | Primary sightline | Fixture placement side |
|---|---|---|
| Front lawn | Street and entry | Street-facing side of trunk |
| Patio border | Seated eye level | Patio-facing side of trunk |
| Side yard | Interior window views | Window-facing side of trunk |
Placement on the wrong side of the trunk produces a backlit silhouette when you want texture, or a washed face when you want depth.
Step 2. Choose fixtures, beam spreads, and output
Fixture selection is where many tree lighting projects go wrong. Most homeowners focus on fixture style before considering beam spread and lumen output, the two variables that actually determine whether the tree reads well from your primary viewing angle. When thinking through how to place landscape lighting around trees, the fixture choice should follow the tree’s scale and canopy structure, not the other way around.
Select the right beam spread
Beam spread controls how wide the light cone fans out as it travels from the fixture to the target. A narrow spot (8 to 15 degrees) concentrates light on the trunk and lower branches, making it useful for smaller trees or accent work on bark texture. A wide flood (40 to 60 degrees) throws light across the full canopy of a large spreading tree. Most large live oaks and cedar elms in established Dallas neighborhoods respond best to a 30 to 40-degree medium flood, which covers the crown without over-spilling onto adjacent structures.
Beam spread is not adjustable after installation, so confirm the angle matches your fixture-to-tree distance before ordering.
Use this reference table to match beam spread to common tree types:
| Tree type | Recommended beam spread |
|---|---|
| Small ornamental (crape myrtle, possumwood) | 15 to 25 degrees |
| Medium shade tree (cedar elm, red oak) | 25 to 40 degrees |
| Large canopy tree (live oak, pecan) | 40 to 60 degrees |
Match wattage to tree scale
Lumen output should scale with the tree’s physical size. A small ornamental tree rarely needs more than 300 to 400 lumens per fixture. A mature live oak with a 40-foot spread can absorb 600 to 800 lumens without looking overlit. Keep fixture count low and output per fixture higher to maintain clean, controlled light rather than scattering multiple underpowered fixtures around the base.
Step 3. Place and aim uplights at the base
Uplight placement begins at the base, but the trunk is not the target. Your goal is to position each fixture far enough from the trunk so the beam travels upward and outward through the canopy rather than washing flat across the bark surface. When you understand how to place landscape lighting around trees, this single positioning decision separates clean, layered results from the flat, overlit look that comes from fixtures placed too close.

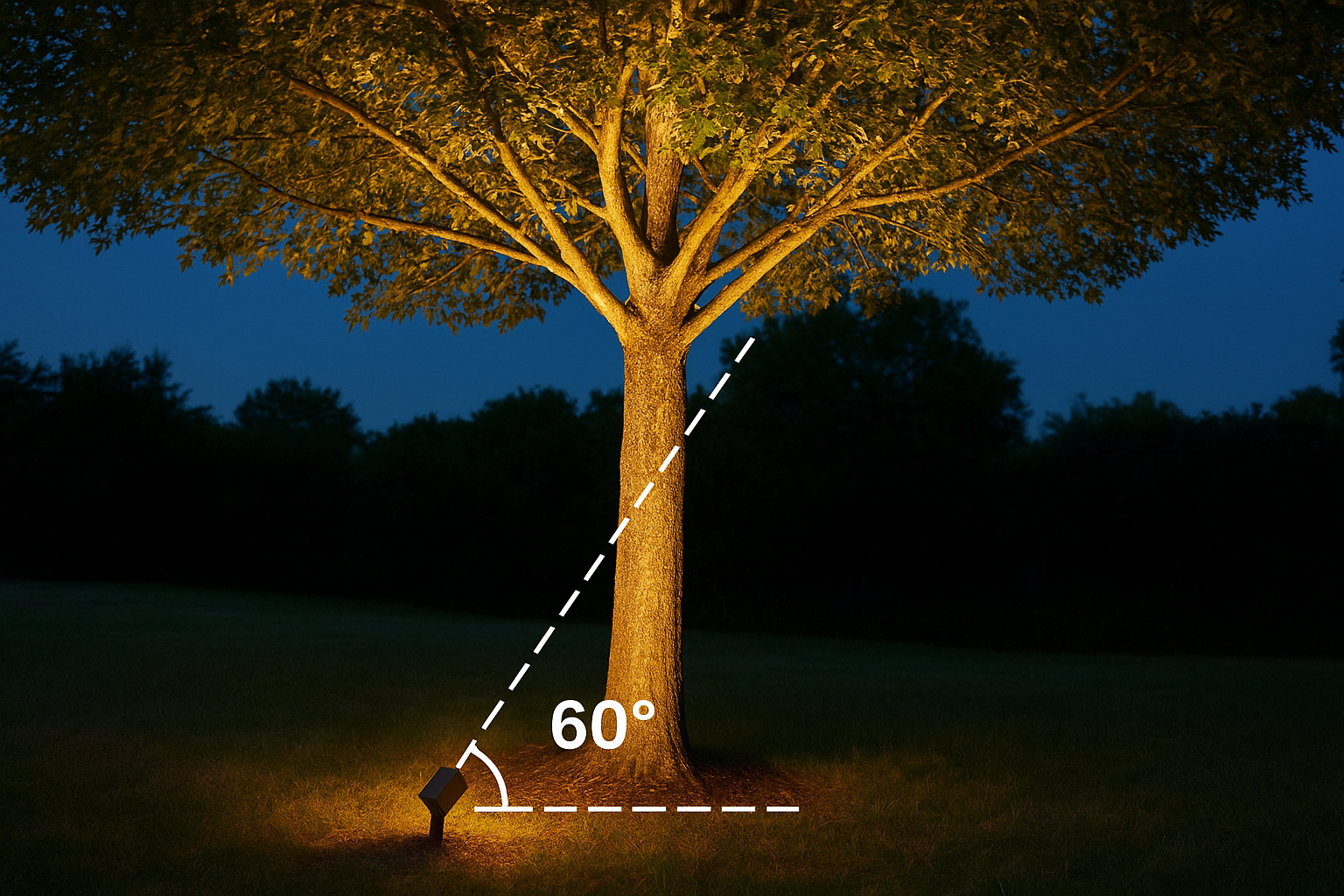

Set the Distance from the Trunk
Distance controls the beam’s entry angle into the canopy, and getting it right depends on the tree’s height and spread. Use this placement table as a starting point, then adjust based on your actual beam spread and fixture output:
| Tree height | Fixture distance from trunk | Starting beam angle |
|---|---|---|
| Under 15 feet | 1 to 2 feet | 45 to 55 degrees |
| 15 to 30 feet | 2 to 4 feet | 55 to 65 degrees |
| Over 30 feet | 4 to 6 feet | 65 to 75 degrees |
Pushing the fixture out too far causes light to hit the mid-canopy and miss the lower branch structure entirely, which flattens the result in the same way that placing it too close does.
Aim the Beam for Maximum Effect
After you set the distance, tilt the fixture head toward the canopy’s geometric center, not straight up. Straight-up aiming concentrates all the light in one vertical column and wastes output on the interior of the canopy where it won’t read from your primary viewing angle.
Aim at the canopy center, not the sky, and you’ll get light that fans through branches rather than punching through them.
Check your aim from your primary viewing angle before securing any fixture stake, because small changes in tilt produce significant shifts in where the shadow patterns fall across the canopy.
Step 4. Add moonlighting and prevent glare
Uplighting handles the canopy from below, but moonlighting works from above, mounted high in the tree and aimed downward through the branches to cast natural, layered shadows onto the ground beneath. This technique pairs well with uplighting on the same tree and is one of the more effective placements when thinking through how to place landscape lighting around trees on large properties. Used alone, moonlighting produces a softer, more naturalistic result than any ground-mounted fixture can achieve.
Mount fixtures high in the canopy for moonlighting
You’ll need a fixture mounted at least 20 to 25 feet above grade, typically secured to a primary branch or main fork in the canopy. Aim the fixture straight down or at a slight outward angle toward the drip zone. The branches filter the beam as it passes through, and that filtered shadow pattern is the result you’re after. Use a narrow spot of 10 to 15 degrees for a concentrated pool of light, or a 25-degree flood if you want broader ground coverage beneath a wide canopy.
The shadows moonlighting casts are more convincing than the light itself, so position the fixture where branches cross the beam path on the way down.
Control glare at eye level
Glare occurs when a fixture’s light source becomes directly visible from a normal standing or seated position. This happens most often when uplights are placed too close to a path or seating area, or when beam angles are too shallow. Fit each ground-mounted fixture with a glare shield or hood to direct the beam upward and block lateral light from hitting your viewer’s eye line directly. Check every fixture from your primary viewing angles at night before finalizing the layout.
Your Final Night Walkthrough
Once your fixtures are placed and aimed, don’t evaluate the result from the same spot where you installed them. Walk each primary viewing angle you identified before the project started, street, front entry, patio, and any interior window with a sightline to the yard. Look for unintended glare, flat sections of canopy where the beam misses, and any fixture that becomes visible to the eye from a normal standing position. Adjust tilt and rotation before securing anything permanently, because small corrections at this stage prevent frustrating reinstallation later.
Your walkthrough is also the right time to confirm that knowing how to place landscape lighting around trees has produced a coherent result across the full yard, not just at individual trees in isolation. Check that the lighting composition reads as a connected system rather than a scattered collection of bright spots. If you want a professional evaluation before finalizing your layout, view completed landscape lighting projects to see how these techniques come together on real Dallas properties, or schedule a consultation to get expert guidance specific to your property.
